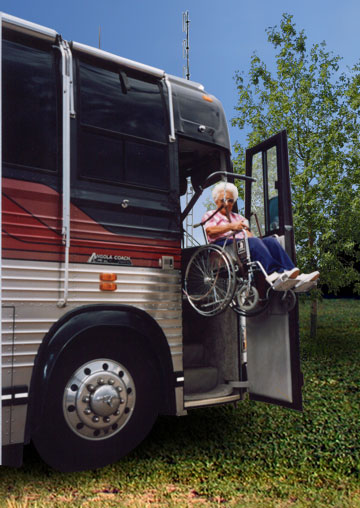

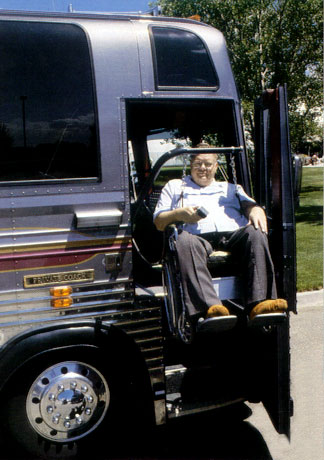

Your Coach or Motorhome is designed for your safety, relaxation and enjoyment. Your mobility equipment should be designed with the same principle in mind. The last things you want are high cost and spending your time fighting your equipment. The #129 Basement Motorhome lift is the safest (per NHTSA studies) and most unobtrusive lift you can own. It is designed for Motor Coaches or mobile homes with a ground to floor height greater than 34 inches, and a door opening of at least 3" wider than the wheelchair. Only 9 inches of mounting space is required on the inside wall by the door for the body of the lift. (If ground to floor is less that 34 inches see #124 Motorhome lift).

One of the biggest drawbacks to platform Motorhome lifts, is that they require a costly separate entrance taking up valuable floor space. With platform style lifts even if they use the existing doorway the platform is always in the way, blocking the windows and other people from getting in and out. With the Superarm Lift series, no doorways are blocked, no platform is used and less parking space is needed because, you don't require space to fold out a platform and then have room to wheel off the end. It sets you down right beside the Motorhome. The Superarm series of lifts are also the quietest lifts made. The installation of this lift is easy and fast. A qualified installer can install it in approximately four to six hours. The lift is powered by the Motorhome's electrical system, so no extra battery is needed. It has a low amp ½ hp motor that drives the gears, which allows the arm to pivot in and out of the vehicle. It also has a linear actuator that controls the elevation of the lift unit. This allows for the additional height clearance needed for your chair to land on the floor of the vehicle. Each lift comes with 1-inch wide mountain climber type webbing straps. The straps are inconspicuous and comfortable. This webbing material has been tested at over 1700 lbs. You are fully secured while loading and unloading. (Lift capacity 600 lbs.) The switches for the operation of #129 Basement Motorhome Lift are located on a hand held pedant with switches attached to the lift via a cord. The cord length is sufficient so that the user can easily load and unload themselves, or an attendant can operate the switch pendant. There are two toggle switches on this pendant. One is to operate to operate the in out function of the arm, the second switch controls the elevation of the lift unit. Many users feel that the Superarm lift has completely revolutionized the way they approach mobility and their vehicle.

Features Benefits
  • Safest Lift available (per NHTSA studies).
    		•
  • Peace of mind in knowing you and your loved ones are safe and secure with no platform to fall off.
  • Compact lift body 9” wide, Arm 3 ½ “ wide
    		•
  • Doesn’t block windows.

    •
  • Preserves you precious floor space.
    		•
  • No Platform
  • Leaves doorway open.

  • There is no platform to fall off of.
  • Minimal modification to vehicle
    		•
  • Protect resale value of your vehicle.

  • Maintain transferability of your lift.
  • All Electric-Low Amperage

  • Runs off vehicle battery
  • Less drain on your electrical system

  • No extra battery needed

    		•
  • Lift is rated at 600 lbs
    		•
  • Will lift most chairs; manual, electric, sport style & scooters
    		•
  • Exceeds V.A. Standards
  • Financial aid available through some organizations.
    		•
  • Less parking space needed Don’t need space for platform to unfold, land and then have space to let you off the end.
    		•
  • Requires loading space only the size of the wheelchair
  • Convert vehicle to fit your needs, not the lift's
    		•
  • Less money for purchase
    		•
  • Designed - by the disabled
    		•
  • Unique perspective of the disabled community travelers' needs
    		•
  • No hydraulics
  • Dependable in all weather No leaks or freeze ups
  • 3 year warranty (5 year limited)
    		•
  • 40+ years of service & standing behind our products
    		•
  • Standard manual crank down on the motor uses 1/2-inch ratchet wrench
    		•
  • Back up feature for manual operation.
  • Lift fits all year makes and models of Motorhomes with 34 inch or lower ground to floor height and door opening 3.5 inches wider than chair.
    		•
  • If you purchase a new Motorhome you can transfer the lift from one Motorhome to another with out buying a new lift. Your investment is protected.


    • Pricing
    Call 1-800-782-4335 for pricing information and dealer information. Or contact us via email



    Specifications - Click here for specification sheets
    General Superarm Requirements for all models:

  • Available door entry must be at least 3 ½ inches wider than your wheelchair at its widest point
  • Rider must be able to sit upright inside the vehicle with a minimum of 1-inch headroom.
  • Most chairs will work, however chairs cannot exceed 39 ½ inches long.
  • If you have a scooter, please let us know the type and length and we will let you know the requirements.
  • Child Inserts, or oxygen tanks on the back of the chair can cause balance problems. Please let us know the specific type of chair and Motor home type that you intend to use and we will let you know the feasibility of Superarm use.

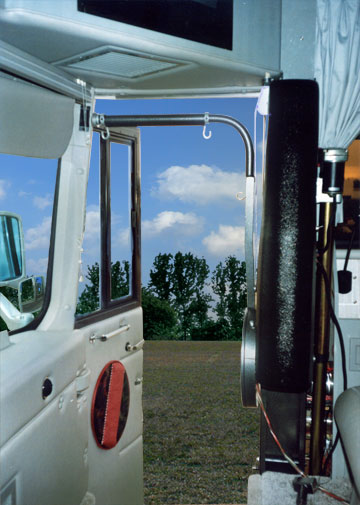

    The Superarm Basement model Motorhome lift #129
  • Ground to floor height of 34-52 inches
  • Lift requires 9 inches of mount space on the wall inside the door on either the left or right hand side. (Must specify Left or Right, can not be both)
  • Door width must be 3 ½ inches wider than the wheel chair you will be using at its widest point.

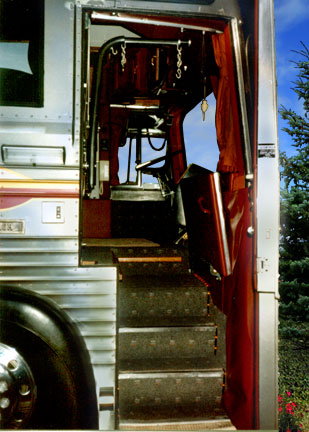

  • Step well must have some covering built over it allowing a safe landing area on the floor of Coach or motorhome.

    DON'T LET ANYONE TALK YOU INTO ALL THE EXPENSIVE EXTRAS!
    YOU DESERVE THE BEST!
    Don't buy equipment tailored to the dealer's bottom line. Buy the equipment that fits your needs. You have the right to get the equipment you want and need.


    Most Customers don't need a bulky platform lift and all the expensive modification to their vehicle. With the SUPERARM there are no major modifications to your vehicle. Our lift also takes up less parking space, because you don't need the extra room to roll off the end of a platform. Electric door openers may be used with our lift for those who need them, however it is not required for the operation of any of the Superarm lift series.
